Migration from GitHub app

This guide will walk you through the process of migrating from Port's existing GitHub cloud app to the improved GitHub integration powered by Ocean.

Entity ownership transfer

This migration focuses on transferring entity ownership from the legacy GitHub App to the new GitHub Ocean integration.
This is a recommended step before uninstalling the old app.

Note that:

Only the integration that created an entity can delete it.
If you uninstall before transferring ownership, entities created by the old integration will become orphaned and will have to be deleted manually.

Improvements

The new Ocean-powered GitHub integration comes with several key improvements:

More authentication options - You can now connect the integration using a Personal Access Token (PAT) that you control, giving you more flexibility.
Enhanced performance - Faster resyncs thanks to improved API efficiency, making your data available sooner.
Better selectors - More granular control over what you sync with improved selectors for pull requests, issues, dependabot alerts, codescanning alerts, files, and folders.

Multi-organization support

The GitHub integration supports ingesting data from multiple GitHub organizations starting from version 3.0.0-beta. Configure one organization using githubOrganization, in your environment variables or list multiple organizations in your port mapping under organizations:

deleteDependentEntities: true
createMissingRelatedEntities: true
enableMergeEntity: true
organizations:
  - org1
  - org2
# ... rest of your mapping (repositoryType, resources, etc.) ...

Precedence: If githubOrganization is set in the environment variables or config and organizations are listed in port mapping, the integration syncs only the githubOrganization (single‑org behavior).

Authentication model

Personal access token (PAT)

You can now authenticate with our GitHub integration using a Personal Access Token (PAT) instead of a GitHub App. This gives you more control over the integration's permissions. For more details, see the installation page.

Classic PAT required for multi-org

For multi-organization support, you must use a classic Personal Access Token. Fine-grained PAT tokens do not work with multi-organization configurations.

Below is a sample Helm value for this configuration:

integration:
  secrets:
    githubToken: "<GITHUB_PAT>"

GitHub App

If you prefer using a GitHub App, you can still authenticate with our Ocean-powered GitHub integration. You will need to create the app yourself, which is a process similar to our existing self-hosted app installation. This process is documented here.

Single organization limitation

GitHub App authentication only supports one organization at a time. You must specify exactly one organization using githubOrganization.

Below is a sample Helm value for this configuration:

integration:
  config:
    githubAppId: "<GITHUB_APP_ID>" # app client id also works
    githubOrganization: "my-org" # Required for single organization support regardlass of token type
  secrets:
    githubAppPrivateKey: "<BASE_64_ENCODED_PRIVATEKEY>"

Webhooks

The integration now automatically configures webhooks on GitHub to receive live events. To enable this, you must grant your PAT permission to create organization webhooks. Additionally, you need to provide a public URL for the integration. You can do this by setting liveEvents.baseUrl when deploying with Helm or ArgoCD, or by setting the OCEAN__BASE_URL environment variable when running the integration as a Docker container. For more details, please refer to the live events documentation.

Deployment

We've expanded our self-hosted installation examples to support deploying on a Kubernetes cluster using Helm or ArgoCD. For more details, please refer to the deployment documentation.

Workflow runs

We have increased the number of workflow runs ingested for any given workflow in a repository. The new integration now fetches up to 100 of the latest workflow runs, up from the previous limit of 10 per repository.

Repository type

You can now specify the type of repositories (public, private, or all) from which to ingest data. All other data kinds that are associated with repositories (like pull requests, issues, etc.) will only be fetched from repositories that match this configuration.

repositoryType: "all" # ✅ fetch pull requests from all repositories. can also be "private", "public", etc
resources:
  - kind: pull-request
    selector:
      # ...

Kind mapping changes

The data blueprints for GitHub have been updated to provide cleaner data structures and improved relationships between different software catalog entities. Understanding these changes is crucial for a smooth migration.

A key change is how we denote custom attributes. We now add a double underscore prefix (e.g., __repository) to attributes that Port adds to the raw API response from GitHub. This makes it clear which fields are part of the original data and which are enrichments from the integration.

Files & GitOps

Organization field in file selectors

The organization field is optional when githubOrganization is set in the environment variables and it is required when not provided there.

Existing configuration (click to expand)

resources:
  - kind: file
    selector:
      query: "true"
      files:
        # Note that glob patterns are supported, so you can use wildcards to match multiple files
        - path: "**/package.json"
          # The `repos` key can be used to filter the repositories from which the files will be fetched
          repos:
            - "MyRepo" # ❌ changed
    port:
      entity:
        mappings:
          identifier: .file.path # ❌ Changed
          title: .file.name
          blueprint: '"manifest"'
          properties:
            project_name: .file.content.name
            project_version: .file.content.version
            license: .file.content.license

New configuration (click to expand)

resources:
  - kind: file
    selector:
      query: "true"
      files:
        # Note that glob patterns are supported, so you can use wildcards to match multiple files
        - path: "**/package.json"
          organization:
            my-org # Optional if githubOrganization is set; required if not set
            # The `repos` key can be used to filter the repositories and branch where files should be fetched
          repos:
            - name: MyRepo # ✅  new key:value pairs rather than a string.
              branch: main # ✅  new optional branch name for each specified repository
            - name: MyOtherRepo
    port:
      entity:
        mappings:
          identifier: .path
          title: .name
          blueprint: '"manifest"'
          properties:
            project_name: .content.name
            project_version: .content.version
            license: .content.license

Here are the key changes for file mappings:

The organization field can be specified per file pattern when no global organization is configured.
The repos selector is now a list of objects, where each object can specify the repository name and an optional branch. This provides more granular control over which files are fetched.
File attributes are no longer nested under a file key. They are now at the top level of the data structure. For example, instead of .file.path, you should now use .path.
The repo key has been renamed to repository when referencing the repository a file belongs to, for consistency with other data kinds.

Repository relationships

Fetching related data for a repository, like teams and collaborators, is now managed through a unified include selector. This replaces the previous method of using separate boolean flags for each data type, offering a more consistent and streamlined approach.

Repository and teams

Existing configuration (click to expand)

resources:
  - kind: repository
    selector:
      query: "true" # JQ boolean query. If evaluated to false - skip syncing the object.
      teams: true # ❌ changed
    port:
      entity:
        mappings:
          identifier: .name
          title: .name
          blueprint: '"githubRepository"'
          properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
          relations:
            githubTeams: "[.teams[].id | tostring]" # ❌ changed

New configuration (click to expand)

resources:
  - kind: repository
    selector:
      query: "true"
      include: ["teams"] # ✅ new
    port:
      entity:
        mappings:
          identifier: .name
          title: .name
          blueprint: '"githubRepository"'
          properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
          relations:
            githubTeams: "[.__teams[].id | tostring]" # ✅ new

Repository and collaborators

Existing configuration (click to expand)

resources:
  - kind: repository
    selector:
      query: "true"
      collaborators: true # ❌ changed
    port:
      entity:
        mappings:
          identifier: .name
          title: .name
          blueprint: '"githubRepository"'
          properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
          relations:
            collaborators: "[.collaborators[].login]" # ❌ changed

New configuration (click to expand)

resources:
  - kind: repository
    selector:
      query: "true"
      include: ["collaborators"] # ✅ new
    port:
      entity:
        mappings:
          identifier: .name
          title: .name
          blueprint: '"githubRepository"'
          properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
          relations:
            collaborators: "[.__collaborators[].login]" # ✅ new

Issues

We've introduced a new state selector. This allows you to filter which objects are ingested based on their state (e.g., open, closed).

Existing configuration (click to expand)

resources:
  - kind: issue
    selector:
      query: ".pull_request == null" # JQ boolean query. If evaluated to false - skip syncing the object.
    port:
      entity:
        mappings:
          identifier: ".repo + (.id|tostring)"
          title: ".title"
          blueprint: '"githubIssue"'
          properties:
            creator: ".user.login"
            assignees: "[.assignees[].login]"
            labels: "[.labels[].name]"
            status: ".state"
            createdAt: ".created_at"
          relations:
            repository: ".repo" # ❌  changed

New configuration (click to expand)

resources:
  - kind: issue
    selector:
      query: ".pull_request == null" # JQ boolean query. If evaluated to false - skip syncing the object.
      state: "closed" # ✅  new
    port:
      entity:
        mappings:
          identifier: ".__repository + (.id|tostring)"
          title: ".title"
          blueprint: '"githubIssue"'
          properties:
            creator: ".user.login"
            assignees: "[.assignees[].login]"
            labels: "[.labels[].name]"
            status: ".state"
            createdAt: ".created_at"
            closedAt: ".closed_at"
            updatedAt: ".updated_at"
            description: ".body"
            issueNumber: ".number"
            link: ".html_url"
          relations:
            repository: ".__repository" # ✅  new, uses leading underscore to indicate custom enrichment.

Pull requests

We've introduced new selectors to give you more control over which pull requests are ingested. The states selector allows you to filter pull requests by their state (e.g., open, closed). Additionally, you can use maxResults to limit the number of closed pull requests fetched and since to fetch pull requests created within a specific time period (in days).

Existing configuration (click to expand)

resources:
  - kind: pull-request
    selector:
      query: "true" # JQ boolean query. If evaluated to false - skip syncing the object.
    port:
      entity:
        mappings:
          identifier: ".head.repo.name + (.id|tostring)" # The Entity identifier will be the repository name + the pull request ID.
          title: ".title"
          blueprint: '"githubPullRequest"'
          properties:
            creator: ".user.login"
            assignees: "[.assignees[].login]"
            reviewers: "[.requested_reviewers[].login]"
            status: ".status" # merged, closed, opened
            closedAt: ".closed_at"
            updatedAt: ".updated_at"
            mergedAt: ".merged_at"
            createdAt: ".created_at"
          relations:
            repository: .head.repo.name

New configuration (click to expand)

resources:
  - kind: pull-request
    selector:
      query: "true" # JQ boolean query. If evaluated to false - skip syncing the object.
      states: ["open"] # ✅ new
      maxResults: 50 # ✅ new, limit closed PRs to 50 capped at 300
      since: 60 # ✅ new, fetch closed PRs within 60 days capped at 90 days
    port:
      entity:
        mappings:
          identifier: ".head.repo.name + (.id|tostring)" # The Entity identifier will be the repository name + the pull request ID.
          title: ".title"
          blueprint: '"githubPullRequest"'
          properties:
            creator: ".user.login"
            assignees: "[.assignees[].login]"
            reviewers: "[.requested_reviewers[].login]"
            status: ".state" # merged, closed, opened
            closedAt: ".closed_at"
            updatedAt: ".updated_at"
            mergedAt: ".merged_at"
            createdAt: ".created_at"
            prNumber: ".id"
          relations:
            repository: .__repository #  ✅ new, it is now obvious when an attribute is added to the raw API response by the integration.

Folders

Organization field in folder selectors

The organization field is optional when githubOrganization is set in the environment variables and is required when not provided (e.g., Classic PAT with multiple organizations defined in your port mapping).

For the folder kind, the folder.name attribute is no longer part of the response. Instead, you can easily derive the folder name from the folder.path using a JQ expression, as shown in the example below:

Existing configuration (click to expand)

resources:
  - kind: folder
    selector:
      query: "true"
      folders:
        - path: apps/*
          repos:
            - backend-service # ❌  changed
    port:
      entity:
        mappings:
          identifier: ".folder.name" # ❌  changed
          title: ".folder.name" # ❌  changed
          blueprint: '"githubRepository"'
          properties:
            url: .repo.html_url + "/tree/" + .repo.default_branch  + "/" + .folder.path # ❌  changed
            readme: file://README.md

New configuration (click to expand)

resources:
  - kind: folder
    selector:
      query: "true"
      folders:
        - path: apps/*
          organization: my-org # Optional if githubOrganization is set; required if not set
          repos:
            - name: backend-service # ✅  new, now has a 'name' key
              branch: main # ✅  new, optional branch name
    port:
      entity:
        mappings:
          identifier: .folder.path | split('/') | last # ✅  new, derived using JQ
          title: .folder.path | split('/') | last
          blueprint: '"githubRepository"'
          properties:
            url: .__repository.html_url + "/tree/" + .__repository.default_branch  + "/" + .folder.path # ✅  new, repository is a custom enrichment
            readme: file://README.md

Teams

To improve performance when fetching team members, we now use GitHub's GraphQL API instead of the REST API.

This change has two main consequences:

The ID for a team may differ depending on whether you are fetching its members. This is due to differences between GitHub's REST and GraphQL APIs.
Team members are now located in a nodes subarray within the team object.

Existing configuration (click to expand)

- kind: team
  selector:
    query: "true"
    members: true # ✅  unchanged
  port:
    entity:
      mappings:
        identifier: .id | tostring
        title: .name
        blueprint: '"githubTeam"'
        properties:
          slug: .slug
          description: .description
          link: .url
        relations:
          team_member: "[.members[].login]" # ❌  changed

New configuration (click to expand)

- kind: team
  selector:
    query: "true"
    members: true # ✅  unchanged
  port:
    entity:
      mappings:
        identifier: .id # toString is not neccesary, graphql id is a string
        title: .name
        blueprint: '"githubTeam"'
        properties:
          slug: .slug
          description: .description
          link: .url
        relations:
          team_member: "[.members.nodes[].login]" # ✅  new, nodes subarray

Other changes

`dependabot-alert`

The dependabot-alert kind now supports a states selector. This allows you to specify an array of states (e.g., open, fixed) to control which alerts are ingested:

resources:
  - kind: dependabot-alert
    selector:
      query: "true"
      states: # ✅  new
        - "open"
        - "fixed"

`code-scanning-alerts`

The code-scanning-alerts kind now supports a state selector. This allows you to specify a single state (e.g., open) to control which alerts are ingested:

resources:
  - kind: code-scanning-alerts
    selector:
      query: "true"
      state: open # ✅  new

`secret-scanning-alerts`

The secret-scanning-alerts kind is now available in Ocean GitHub. You can filter by a single state (e.g., open) and control whether the secret content is included using the hideSecret option (defaults to true, which hides the secret):

resources:
  - kind: secret-scanning-alerts
    selector:
      query: "true"
      state: open # ["open", "resolved", "all"]
      hideSecret: true # (default: true)

Summary of key changes

This section provides a high-level summary of the key changes for mappings.

Area	Old Value	New Value	Notes
Multi-Organization	N/A	`githubOrganization` is not optional	Classic PAT supports multiple orgs using the `organization` parameter in port mapping, GitHub App and Fine-grained PAT do not support multi organization and there required the `githubOrganization` configuration. Syncing multiple organizations increases API calls and may slow down the integration.
File Organization	N/A	`organization: "my-org"`	Optional if `githubOrganization` is set, required when not (e.g., Classic PAT multi-org).
Folder Organization	N/A	`organization: "my-org"`	Optional if `githubOrganization` is set, required when not set(e.g., Classic PAT multi-org).
Authentication	GitHub App Installation	PAT or Self-Created GitHub App	The integration can be authenticated using a Personal Access Token (PAT) or a self-created GitHub App. Multi-org requires classic PAT.
Webhooks	App Webhook	Automatic Setup by Integration	The integration now manages its own webhooks for live events. This requires `webhook` permissions and `liveEvents.baseUrl` to be set.
Workflow Runs	10 per repository	100 per workflow	The number of ingested workflow runs has been increased.
Repository Type	N/A	`repositoryType` configuration	A new top-level configuration is available to filter repositories by type (`public`, `private`, or `all`).
Repository Relationships	`teams: true`, `collaborators: true`	`include: "teams"`, `include: "collaborators"`	The `include` selector replaces boolean flags for fetching related data. The fetched data is also now prefixed with `__` (e.g., `.__teams`).
Pull Requests	N/A	`states`, `maxResults`, `since` selectors	New selectors are available for more granular filtering.
File properties	`.file.path`	`.path`	All file properties are now at the top level of the object, no longer nested under `.file`.
Repository reference	`.repo` or `.head.repo.name`	`.__repository`	The integration now consistently provides repository information under the `__repository` field for all relevant kinds.
Folder name	`.folder.name`	`.folder.path \| split('/') \| last`	The folder name is no longer directly available and should be derived from the folder path using a JQ expression.

Step-by-step migration plan

This section provides the practical steps to migrate your entities and transfer ownership to the new GitHub Ocean integration.

Prerequisites

Get your installation IDs

Before migrating, you need to identify both installation IDs:

For the legacy GitHub App installation ID:

Navigate to GitHub App installations:
- Personal installations: https://github.com/settings/installations
- Organization installations: https://github.com/organizations/YOUR-ORG/settings/installations
Click on Port's GitHub App installation from the list
Look at the URL in your browser address bar — it contains the installation ID at the end

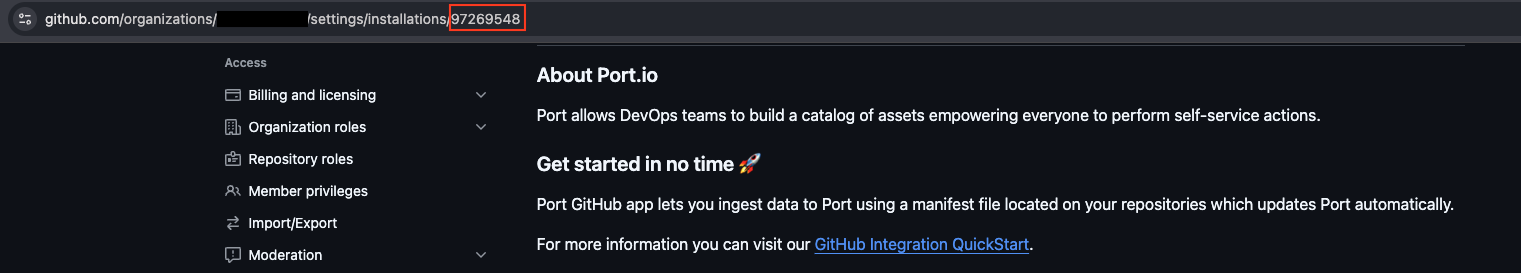

Visual guide:

The installation ID is the numeric value circled in the URL bar (e.g., 97269548 in the example above).

For the new GitHub Ocean integration:

The installation ID is the name you gave to the new GitHub Ocean integration when you created it

Install the migrator tool

curl -sL https://raw.githubusercontent.com/port-labs/port-github-migrator/main/install.sh | bash

Gather your Port API credentials:

Port API client ID
Port API client secret
Your Port instance URL

For detailed command reference and usage examples, refer to the port-github-migrator GitHub repository. The repository contains complete documentation for all available commands.

Set up the new integration

Install GitHub Ocean — Follow the installation guide
Keep new integration mappings minimal — For now, configure only the organization kind in the new GitHub Ocean integration. You'll add additional kinds one at a time during Phase 2.
Verify legacy integration — Trigger a resync of the legacy GitHub App integration to confirm the current entities structure

Migrate each blueprint (entity ownership transfer)

This is where you transfer ownership of entities from the old app to the new one.

For each blueprint, repeat these steps:

Step 1: Create temporary blueprint

Duplicate your existing blueprint and rename to <blueprint>-ocean-temp (choose whatever name you want)

Step 2: Map the new integration to the temporary blueprint

resources:
  - kind: repository
    port:
      entity:
        mappings:
          blueprint: '"githubRepository-ocean-temp"' # Use temp blueprint
          # ... rest of config ...

Step 3: Compare entities

port-github-migrator get-diff githubRepository githubRepository-ocean-temp \
  --client-id <your-client-id> \
  --client-secret <your-client-secret> \
  --old-installation-id <legacy-id> \
  --new-installation-id <ocean-id> \
  --port-url https://your-port.com

Step 4: Adjust mappings if needed

Review the Kind mapping changes section and update your configuration if there are differences

Step 5: Transfer ownership (critical step)

port-github-migrator migrate githubRepository \
  --client-id <your-client-id> \
  --client-secret <your-client-secret> \
  --old-installation-id <legacy-id> \
  --new-installation-id <ocean-id> \
  --port-url https://your-port.com

This command transfers ownership of all entities in the blueprint from the old app to the new integration.

Step 6: Update mapping and clean up

Point the new integration back to the original blueprint
Delete the temporary blueprint

Step 7: Repeat for each remaining blueprint

Update action backend types

If you have self-service actions or automations that use the legacy GitHub App backend, you must update them to use the new GitHub Ocean backend before uninstalling the old integration.

For each action that uses GitHub workflows:

Navigate to the action's configuration in Port
Update the backend type from the legacy GitHub App backend to GitHub Ocean
Set the installationId field to the name of your GitHub Ocean integration installation
Configure the organization, repository, and workflow details as needed

For detailed configuration instructions, refer to the GitHub Ocean backend documentation.

Finalize and uninstall

Only uninstall the legacy GitHub App after:

✅ All blueprints are migrated
✅ Ownership is transferred for each blueprint (using the migrate command)
✅ The new integration is syncing correctly
✅ All actions are migrated to use the GitHub Ocean backend

Best practices

Start with non-critical blueprints — Build confidence before migrating critical data
One blueprint at a time — Easier to debug if issues arise
Use get-diff before migrating — Verify entities match before transferring ownership
Keep legacy app active — Don't remove until all migrations complete, removing it early will leave orphaned entities that can only be deleted manually
Check Port logs — Monitor for any sync issues after migration
Ownership is reversible — If issues arise, you can revert by deleting the migrated entities and resyncing the old integration, this will recreate those entities under the old integration ownership

Improvements​

Multi-organization support​

Authentication model​

Personal access token (PAT)​

GitHub App​

Webhooks​

Deployment​

Workflow runs​

Repository type​

Kind mapping changes​

Files & GitOps​

Repository relationships​

Repository and teams​

Repository and collaborators​

Issues​

Pull requests​

Folders​

Teams​

Other changes​

dependabot-alert​

code-scanning-alerts​

secret-scanning-alerts​

Summary of key changes​

Step-by-step migration plan​

Prerequisites​

Get your installation IDs​

Install the migrator tool​

Set up the new integration​

Migrate each blueprint (entity ownership transfer)​

Update action backend types​

Finalize and uninstall​

Best practices​

Improvements

Multi-organization support

Authentication model

Personal access token (PAT)

GitHub App

Webhooks

Deployment

Workflow runs

Repository type

Kind mapping changes

Files & GitOps

Repository relationships

Repository and teams

Repository and collaborators

Issues

Pull requests

Folders

Teams

Other changes

`dependabot-alert`

`code-scanning-alerts`

`secret-scanning-alerts`

Summary of key changes

Step-by-step migration plan

Prerequisites

Get your installation IDs

Install the migrator tool

Set up the new integration

Migrate each blueprint (entity ownership transfer)

Update action backend types

Finalize and uninstall

Best practices
